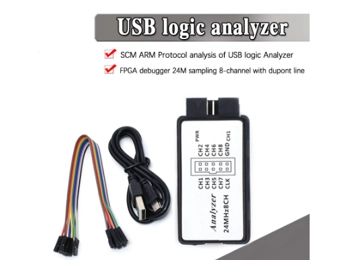

USB Logic Analyze 24MHz 8ch, mcu fpga dsp spi debug tool
Product Code: Log8
Rating: Be the first to write a review
Brand: HI
Weight: 50.0g
Product Condition: New
Features:
- 8 channels input.
- USB power supply.
- Data upload real time,the max of depth of collection is 10T, far from practical need.
- Support WIN7(32&64), 2K, XP, LINUX.
- Free software
- Sampling rate up to: 24 MHz , can be 24MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz;
- The logic for each channel sampling rate of 24M/s. General applications around 10M, enough to cope with a variety ofoccasions;
- 8-channel;
- Input voltage range: -0.5V to 5.25V
- Input Low Voltage: -0.5V to 0.8V
- Input High Voltage: 2.0V to 5.25V
- Works with 5V, 3.3V, 2.5V, 2.0V systems. May work with 1.8V but not recommended.
- Input Impedance: 1Mohm || 10pF (typical, approximate)
- Crystal: +/-20ppm, 24MHz
- Error/Accuracy: pulse-width measurement: +/- 42ns (at 24MHz).
Package included：
- Logic Analyser Device
- USB Cable
