DSO-TC3 Product Manual:https://www.mediafire.com/file/3eddj8oght8m0q3/TC3_product_manual.pdf/file

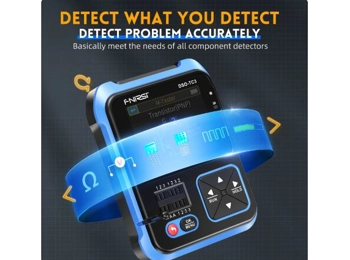

FNIRSI DSO-TC3 combines a digital oscilloscope, electronic component tester, signal generator, continuity test, voltage test, temperature and humidity measurement, infrared decoding and other functions are skillfully integrated. It is equipped with a 2.4-inch color TFT display, built-in rechargeable lithium battery, brings users stronger and more practical functions with good portability.



Packing list:

• DSO-TC3 *1
• P6100 High Voltage Probe*1
• Ordinary probe*1
• Test hook*3
• Adapter*1
• Type-C charging cable*1
• Packing box*1
• Manual*1

• IS Battery Demountable

  No
  Model Number

  FNIRSI DSO-TC3
• Display resolution

  320*240 Pixels
  Display Size

  2.9 Inches & Under
• Band Width

  Less than 60MHz
  Digital Channels

  1
• DIY Supplies

  ELECTRICAL
  Brand Name

  FNIRSI
• Origin

  Mainland China
  Certification

  CE
• Display Screen

  2.4 inch TFT color screen
  Supply voltage

  Rechargeable lithium battery
• Charging specifications

  Type-C 5V
  Bracket specifications

  All-in-one foldable stand
• Real-time sample rate

  10MSa/s
  Analog Bandwidth

  500Khz
• Input resistance

  1MΩ
  Coupling Mode

  AC/DC
• Test voltage range

  400V
  Vertical Sensitivity (x1)

  10mV-10V
• Horizontal time base range

  1us-10s
  Trigger Mode

  Auto / Normal / Single
• Trigger type

  Rising edge / Falling edge
  Waveform Freeze

  Yes
• Automatic measurement

  Yes
  Diodes Forward voltage drop

  <4.5V
• Reglulated Diode

  0.01~4.5V
  MOSFET

  JFET IGBT MOSFET
• SCR

  Turn-on voltage <5V, gate Pole trigger current <6mA
  Capacitor

  5pF~100mF
• Resistor

  0.01Ω~50MΩ
  Inductor

  10uH~1000mH
• Battery

  0.1~4.5V
  Input voltage

  0~40V
• DS18B20

  0-85℃
  DHT11

  0-60℃/5-95%
• Infrared remote decoding

  NEC protocol infrared code
  Triangle wave

  1-10KHz/0-3.3V/50%,1-10KHz/0-3.3V/50%
• Square wave

  1-100KHz/3.3V/50%
  Pulse wave

  1-100KHz/3.3V/0-100%
• Ramp

  1-10KHz/0-3.3V/0-100%
  DC

  0-3.3V

---
