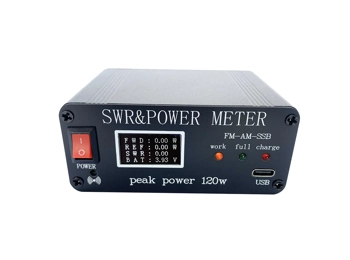

120w Mini Power & SWR Meter - USB Charging
Product Code: SWR-12
Rating: Be the first to write a review
Brand: HI
Weight: 100.0g
Product Condition: New
Feature:
1. Information: After booting, the device version information will be displayed, and the device power standing wave measurement interface will be displayed after 3 seconds.
2. Support: Support English interface. Support display battery level.
3. Built-in Battery: Charge through the USB interface.
4. Lightweight and compact, easy to carry, can be used outdoors.
5.Quality Assurance:We support the quality of the products, if you have any product questions, please contact us in time, we will give you a satisfactory answer as soon as possible.
Specification:
Indicator light and buzzer:
When charging, the red light is on; after the charging is completed, the green light is on; when it is working, the yellow light is on.
If the standing wave is greater than 2.5, the buzzer will prompt intermittently.
If the standing wave is greater than 3.0, the buzzer will keep prompting.
If the battery voltage is too low, the buzzer will keep prompting.
Frequency range: 1.8MHz-50MHz
Measurement range: 0.5W-120W (up to 210W. For long-term FM, AM and CW modes, below 120W; SSB mode optional)
Measurement accuracy: <±5%
Standing wave range: 1.0-99.99
Access interface: SL16 (M socket)
Charging port: c type, 5v1a
Battery capacity: 1000mAh
Insertion loss: <0.1db
Aluminum case size: about 6.3 x 8.8 x 3.8cm/2.48x3.46x1.49inch (excluding protrusions)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Include:
1 x Standing Wavemeter
1. Information: After booting, the device version information will be displayed, and the device power standing wave measurement interface will be displayed after 3 seconds.
2. Support: Support English interface. Support display battery level.
3. Built-in Battery: Charge through the USB interface.
4. Lightweight and compact, easy to carry, can be used outdoors.
5.Quality Assurance:We support the quality of the products, if you have any product questions, please contact us in time, we will give you a satisfactory answer as soon as possible.
Specification:
Indicator light and buzzer:
When charging, the red light is on; after the charging is completed, the green light is on; when it is working, the yellow light is on.
If the standing wave is greater than 2.5, the buzzer will prompt intermittently.
If the standing wave is greater than 3.0, the buzzer will keep prompting.
If the battery voltage is too low, the buzzer will keep prompting.
Frequency range: 1.8MHz-50MHz
Measurement range: 0.5W-120W (up to 210W. For long-term FM, AM and CW modes, below 120W; SSB mode optional)
Measurement accuracy: <±5%
Standing wave range: 1.0-99.99
Access interface: SL16 (M socket)
Charging port: c type, 5v1a
Battery capacity: 1000mAh
Insertion loss: <0.1db
Aluminum case size: about 6.3 x 8.8 x 3.8cm/2.48x3.46x1.49inch (excluding protrusions)
Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
Include:
1 x Standing Wavemeter
